If you are searching for superior edible bean harvesting equipment look no further than the Double Master Plus-Side Pull Edible Bean Combine with 2 models to choose from for your dry bean harvest.
Product Overview

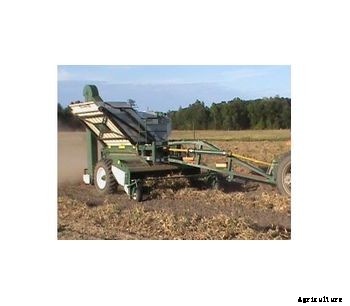

Double Master Plus-Side Pull Edible Bean Combine
- On-the-Go universal swing tongue with 180 degree swivel gear box
- Heavy duty drive train including over running clutch protection (Walterscheid)
- In-cab Touch screen shaft monitor system for monitoring cylinder, cross auger and shaker pan
- Touch screen monitor also controls the pickup head On/Off switch and speed
- In cab Ag Cam displays final shaker sieve
- North American compatible JIC Hydraulic fittings
- 2 speed transmission to Threshing Cylinder
- 1000 Input
- Optional transmission output 500 & 350 or 540 & 390
- 84” or 120” (2 windrow), 8 tube, soft fingered pick up head
- Threshing Capacity -- 9 to 13 acres per hour
- Bin capacity -- approximately 8,800 lbs.
- Single stage dump bin
- Dump Bin includes leveling auger
- 27½' diameter concave with 20 mm holes.
- 31 adjustable, hardened threshing pins in central flow cylinder
- Large capacity nylon cup elevator leg
- Rear hydraulic drive elevator leg, shaker pan and cross auger
- Two-stage vacuum cleaning system
- Rear or side straw discharge
- 18.4 × 30 tires 10 ply
- 90” or 126' Star Feeder Housing
- 90” or 126” Feeder Auger
- Cross auger feed to elevator leg
