Potato haulm topper. Gearbox 1000 RPM – Cardan shaft with clutch Level wheels 6,50 x 10 – 10PR (2 pcs) – Cat. 2 three point hitch – Long and short knives (difference 18,5 cm) – Inspection doors on the hood. Details
Welcome to Modern Agriculture!

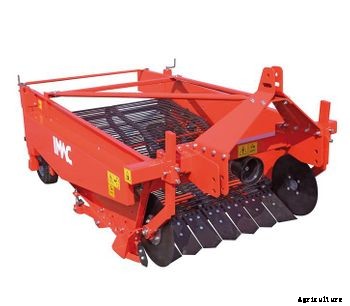

The garlic digger PD is designed for picking up garlic, carrots, garlic, leeks, onions, etc. The standard version is with share blade in whole width, with adjustable angle, two grass-cutting discs (one for each side), one single sieving web, one web shaker with adjustable intensity, two rear wheels adjustable singularly and two adjustable Teflon windrow grates for a perfect windrow. The machine can be linked up to a tractor by the three-point linkage. The digging depth is regulated by the third upper point, by adjustable share angle and by the rear wheels.

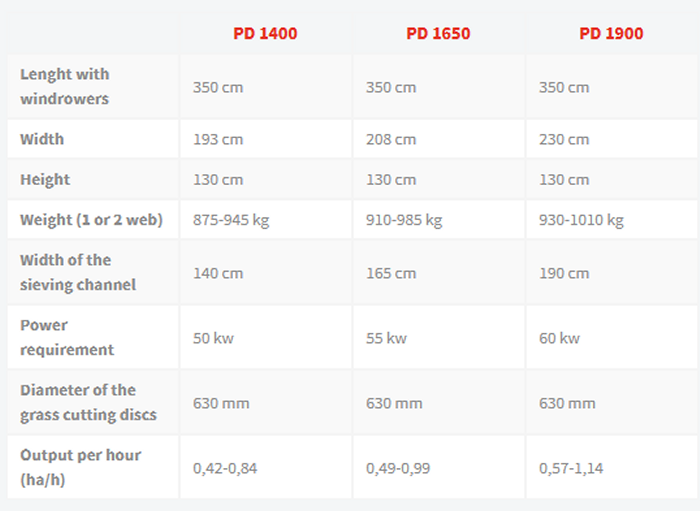

For digging garlic, as “option”, can be supplied two additional grass-cutting discs, two share blades with adjustable width and two feeler roller for level control. These options permit to reduce to minimum the remaining soil and stones picked up with the garlic. A rear soil compacting roller with large diameter (opt.) prepares the bed for the windrow. A second sieving web (opt.) increases considerably the sieving capacity of the garlic digger. The garlic digger both with one or two sieving belts can be delivered with a sieving-channel width of 1,40 m, 1,65 m and 1,90 m – With version at 1,40 m width it is possible to dig 2 rows with an adjustable distance from 0,75 to 0,80 m, while a with width of 1,65 m you can dig rows from 0,85 to 0,90 m adjusting the distance of the feeler rollers and the share blades. Standard sieving webs have a pitch of 36 mm – On request, it’s possible to have pitches of 42 and 50 mm.
Potato haulm topper. Gearbox 1000 RPM – Cardan shaft with clutch Level wheels 6,50 x 10 – 10PR (2 pcs) – Cat. 2 three point hitch – Long and short knives (difference 18,5 cm) – Inspection doors on the hood. Details
The HRS I Series offers options to de-pack and crush (IC Series) and melt (IM Series) frozen juice (a process also sometimes known as re-melting) ready for storage and further processing. Drum Emptying The IC Series Crusher is specifically designed to empty 200 litre drums containing frozen fruit juice conc
1 row potato digger with rear discharge, Rear support wheels, cardan shaft and 2 grass cutting discs. Central or lateral 3 points hitch for small tractors. Working width (54 cm). Details Length 160 cm Width 75 cm Height 85 cm Output per hour ha/h 1,00 Power requirement 15 kw Weight 160 kg
3/4 rows rice seeding machine is a Hand Cranked Rice Transplanter, walking backward type which is ideal for small land. Products Details Space: AdjustableRocking-turn: 240mmWork Speed: 300-500m2/hr Technical Data
