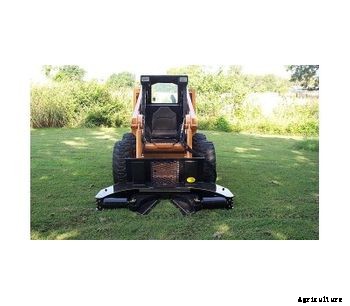

16' one cut capacity. Perfectly flush ground level cuts. Built-in 10 gallon chemical spray tank. Optional Spray System and Tree Grapple. Cylinders angled to push directly at the tree providing the most cutting power of any shear. Hidden grease fittings and hydraulic hoses which greatly reduces down time.
Products Details
Tree grapple controls the fall of the tree
Bunch multiple trees at once
Intergrated pressure reducing valve- keeps small trees from breaking
Intergrated shut off valve- turns off grapple when not needed
Adaptable to most any loader.
Custom mount to fit your application.
Pictured above is a custom build to fit a mini excavator for cutting trees underwater in an oklahoma lake.
Plug and Play adapters available for nearly every brand of skid steer available
Intergrated wiring harness factory installed
Wiring only required to disable grapple, no power required to make grapple operate
Adaptable to any Hydra Clip Tree Shear
Recommended 2500lb operating capacity loader
Minimum 2500 PSI, Recommended 3000 PSI
Open design allows full site through grapple
Works great around fences, highlines and waterways
Extremely high production rate from less movement of trees
Optional spray system
Plug and Play electrical adapters available
Built in 10 gallon chemical tank
Diesel fuel compatible pump
Protected spray nozzle
The fastest cycle time of any shear
Open to close in 4-5 seconds
Grade 8 Plow Bolts keeps blades flush to ground
Commercial and Rental Rated
Recommended 2000 lb operating capacity loader
Minimum 2500 PSI, Recommended 3000 PSI
Does NOT require Hi-flow
Optional tree guard provides protection to the machine and the operator
