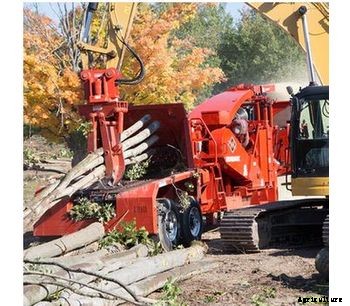

The Morbark 30/36 Whole Tree Drum Chipper’s high production rate lowers operating costs by increasing fuel efficiency. The aggressive live floor feeding system with two strands of durable WHD-120 chain and a large top and bottom feedwheels ensure positive feeding of material, including brushy tops and limbs. Morbark’s Advantage 3 Drum produces more consistent chips, while the heat-treated, AR-450 steel drum skin provides longer wear life for lower replacement costs and less downtime.
Product Details
Morbark Integrated Control Systems (MICS)
This ultimate diagnostic system monitors hydraulic pressures, temperatures, clutch systems and engine efficiency to maximize performance.
Specifications
- Length NCL 31’6″, 9.6 m
- Height NCL 11’6″, 3.5 m
- Width NCL 8’4″, 2.54 m
- Length NCL Track 29'5.25', 8.97 m
- Height NCL Track 11'6', 3.50 m
- Width NCL Track 8'6', 2.59 m
- Gross weight NCL 36,500 lb, 16,556 kg
- Tongue weight NCL 7,200 lb, 3,265 kg
- Axle weight NCL 29,300 lb, 13,290 kg
- Gross weight NCL Track 51,500 lb, 23,360 kg
- Tandem axle NCL 36,000 lb leaf spring suspension, 16,330 kg
- Engine CAT
- Horsepower NCL 577 HP, 430.3 kW
- Horsepower NCL Track 577 HP, 430.3 kW
- Fuel capacity (tank) NCL 160 gallons, 605 litres
- Fuel capacity (tank) NCL Track 200 gallons, 757 litres
- Hydraulic oil capacity NCL 80 gallons, 303 litres
- Hydraulic oil capacity NCL Track 100 gallons, 378 litres
- Chipping capacity 23″ diameter, 58.42 cm
- Tires Super Singles 385/65R/22.5 20-ply
- Brakes air
- Towing arrangement Pintle Hitch Tongue with Skidder Plates
- Tracks 320L Caterpillar undercarriage
