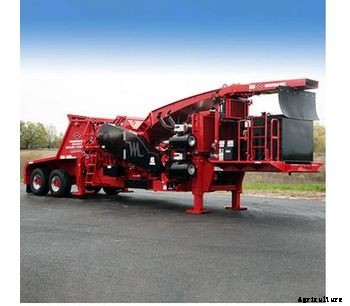

The Morbark 50/48 whole tree wood chipper is the largest, most productive drum chipper on the market. The 50/48X was updated to a similar design layout as Morbark’s other industry-leading industrial drum chippers with a sloped infeed, externally adjustable anvil and large work platforms for easy access for routine maintenance. The reverse pivot yoke produces more down pressure than the conventional style yoke for aggressive feeding of a variety of material. Morbark’s Advantage 3 Drum produces more consistent chips, while the heat-treated, AR-450 steel drum skin provides longer wear life for lower replacement costs and less downtime. The Advantage 3 drum assembly can come as 10-knives for fuel chip or 20-knives for micro-chip applications.
Product Details
Morbark Integrated Control Systems (MICS)
This ultimate diagnostic system monitors hydraulic pressures, temperatures, clutch systems and engine efficiency to maximize performance.
Specifications
- Length NCL 40'10', 12.44 m
- Height NCL 12'6', 3.81 m
- Width NCL 9'10', 3 m
- Gross Weight NCL 72,120 lb, 32,713 kk
- Axle Weight NCL 42,420 lb, 19,241 kg
- Tongue Weight NCL 29,700 lb, 13,471 kg
- Engine CAT
- Horsepower 1,050 to 1,200 HP, 783 to 895 kW
- Fuel capacity (tank) 400 gallons, 1,514 litres
- Hydraulic oil capacity 187 gallons, 708 litres
- Brakes air
- Towing arrangement fifth wheel
- Drum diameter 48″, 121.92 cm
- Drum width 55.5”, 140.97 cm
- Chipper knives (10) 11″ x 7.94″ x 0.75” thick, 27.94 cm x 18.57 cm x 1.9 cm
- Counter knives (10) 11″ x 6.375″ x 0.5” thick, 27.94 cm x 16.19 cm x 1.27 cm
- Drum speed 945 RPM, 946 RPM
- Feed drive Hydraulic
