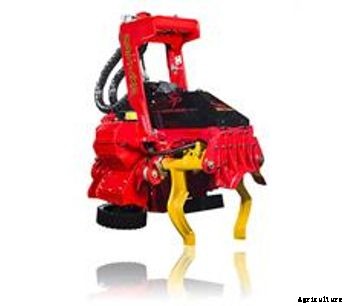

The SP 591 LX G3 is purpose built for harvesting and debarking of the most difficult species of plantation grown eucalyptus and acacia. It is an extremely strong and tough harvester head, designed according to the LX principle for maximum reliability and productivity even under the toughest conditions. The uncompromised LX design is to be found all throughout the harvester head, from large components like frame and knives down to pins and seals. In spite of its brute and tough appearance the SP 591 LX G3 does not just offer strength and reliability, smart solutions like proportional pressures in combination with an unprecedented debarking efficiency and a great handling of crooked trees also make the SP 591 LX G3 an extremely fast, productive and fuel efficient harvester head – the SP 591 LX G3 truly offers high speed debarking for xtreme jobs.
The SP 591 LX G2 is optimized for best productivity and performance handling tree sizes from 10 to 35 cm (4-14”) and is equally productive working in a CTL application as it is processing decked wood out of a pile.
The robust top knife is equipped with a replaceable cutting edge of highest quality for a minimum, cost
effective and easy maintenance.
Pins for cylinders are both hardened and chromed. In combination with large diameters (40mm) this gives a very reliable design with a minimum need for maintenance.
Pins for tilt frame, knives and roller arms are all of expander type. The pins are totally sealed off from sand and dirt. Together with the large diameter (50 mm) this gives an extremely strong and reliable solution for maximum lifetime and a minimum need for maintenance.
Extremely and robust and torsion resistant tilt frame. Soft dampers on both tilt up and down minimizes vibrations and wear.
Hinged valve cover for easy and fast maintenance. The tight fit prevents packing of dirt and debris. Integrated tank with easy access for filling up chain oil.
Encoders for diameter measuring are well protected and integrated in the frame. Mounted in sealed housings for longest life and minimum wear.
The of set feed rollers gives an increased spiralling of the tree resulting in a faster and more effective debarking.
All hydraulic fittings are well protected for less wear and downtime.
Hydraulics
Cutting
Extremely robust and powerful Hultdins SuperCut 100 saw unit with integrated chain lubrication and hydraulic tensioning of the chain.
Weight and dimensions
Despite its extremely robust design, the SP 591 LX G3 has a moderate weight and can therefore be used on a variety of different carriers. Thanks to its compact height, the SP 591 LX G3 can handle crooked and irregular timber efficiently and without difficult.
Recommendations
Carriers
The SP 591 LX G3 can be fitted to a variety of different carriers, such as conventional forest machines and excavators. In order to ensure good function, please consult your nearest SP dealer.
Felling
Proportional clamping pressure of the feed rollers in relation to trunk diameter, individual settings for different species for optimum performance.
* Diameter at breast height, measured 1.3 m up the trunk.
We reserve the right to change specifications and design. Harvester heads pictured may have some extra equipment. All stated measurements/values are approximate and refer to standard equipment.
The SP 591 LX G2 has a very high level of standard equipment. However a number of different options are available for being able to optimize the harvester head for different needs, carriers and conditions.The below list contains the most common options. For more information please contact your nearest SP dealer.
Additional upper debarking knives
When harvesting and debarking certain species of trees under certain conditions the additional debarking knives enables the SP 591 LX G2 to debark the tree in one pass. This dramatically increases the productivity as well as minimizes the wear on the harvester head.
Lower debarking knife
The lower knife main task is to prevent already loosened bark to contaminate the log pile. Together with the additional upper debarking knives this option gives the SP 591 LX G2 an unprecedented debarking efficiency.
Hydraulic motors
In order to optimize the SP 591 LX G2 for different carriers and conditions there are 3 different motor sizes to choose from. Do you need maximum speed, maximum torque or a good mix? 500/315 - 630/400 - 800/500 cc (30,5/19,2 - 38,4/24,4 – 48,8/30,5 cui)
Feed rollers
Different feed rollers for different species and conditions.
3/4” saw unit
The SP 591 LX G2 can be equipped with a _” version of the Hultdins SuperCut100 automatic saw unit.
Top sawA good option when for example working in hard wood with heavy limbs and forks.
Find end sensorMakes operations in pre felled woods easier and more productive. With the find end sensor the harvester head reverses down to the butt end of the stem, stops and sets the length to zero, all with the press of one button.
Complete measuring systemsThe SP 591 LX G2 can be supplied with different measuring systems.
Preparation for measuring systemsThe SP 591 LX G2 can be supplied prepared for machines equipped with any of the following measuring systems:
