Build a Low‑Maintenance Cold Frame with a Smart Hydraulic Opener – Step‑by‑Step Guide

After years of gardening, I learned that the simplest solution often delivers the best results. Rather than spending countless hours on construction, I focused on creating a compact, easy‑to‑move, low‑maintenance cold frame. The key innovation is a hydraulic riser that automatically regulates temperature, reducing the need for frequent checks.

Learn more: Winter Herb Gardening: Easy Herbs to Grow in a Cold Frame

Cold frames are miniature solar greenhouses that warm seedlings, extend the growing season for cool‑weather crops, and protect tender plants—all without external energy. Sunlight enters through a clear‑plastic, glass, or fiberglass sash, which traps heat. While wood is the most common frame material, concrete, stone, and even straw bales are viable options. Because there is no standard size, dimensions should match your available space, intended use, and sash material. A 3‑ to 4‑foot span is usually comfortable to reach across.

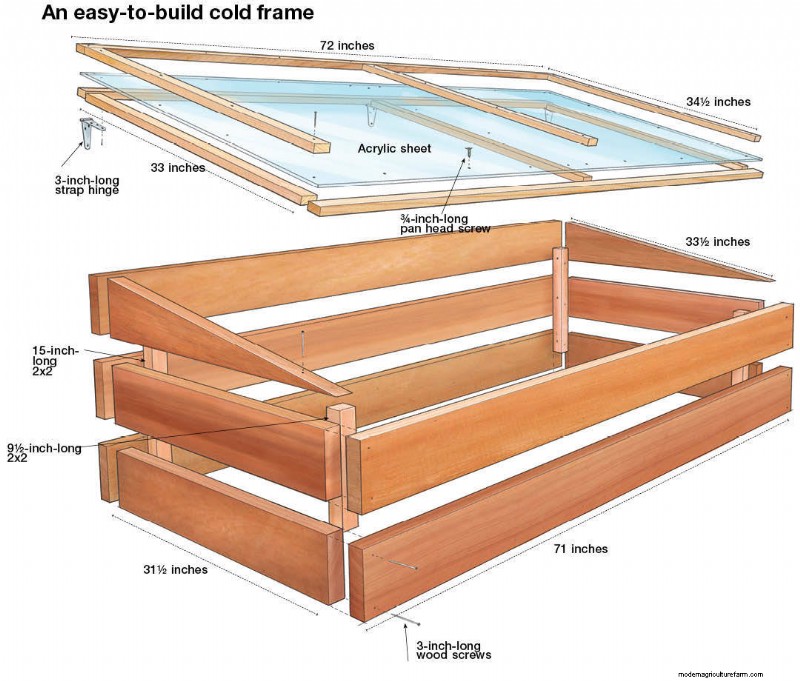

I chose a 72‑inch long, 36‑inch wide acrylic sheet for the sash and clear 2×6 cedar for the structure. Cedar is both rot‑resistant and lightweight, and its natural grain adds visual appeal. The frame’s corners are joined with 2×2s, while the sash is supported by 1×2s.

To simplify construction, have the lumber yard pre‑cut all standard lengths—most shops will do this for free or a nominal fee. The only custom cut is the diagonal 33‑inch 2×6 used to create the angled side boards. This cut can be completed at home; the remainder of the pieces are readily available.

The hardest part isn’t that difficult. The angled pieces come from a single 2×6 cut diagonally. All other cuts can be handled by the lumber yard.

Pick the Right Spot

The ideal location is a south‑ or southeast‑facing slope that maximizes solar gain and drainage. A northward wall or hedge provides wind protection, and partially burying the frame allows earth insulation. Clear a generous path and surrounding area to ensure easy access.

➔ 2×2s Guide the Sides

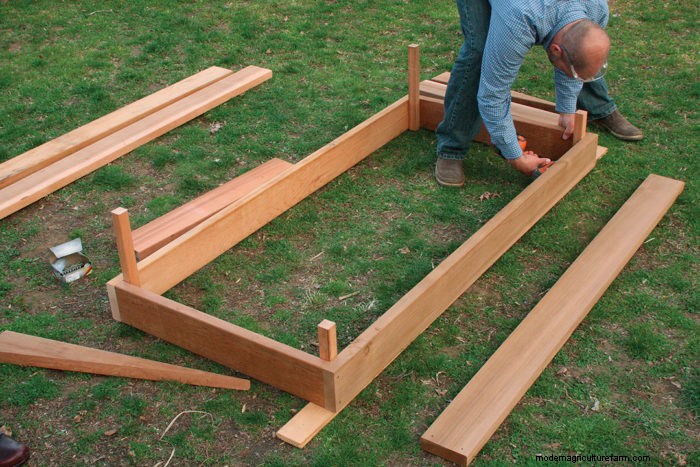

Attach two 71‑inch boards to the butt ends of two 31½‑inch boards to form a shallow box. Secure 2×2s at each corner to align the layers and lock everything together.

➔ Let the Lid Shed Water

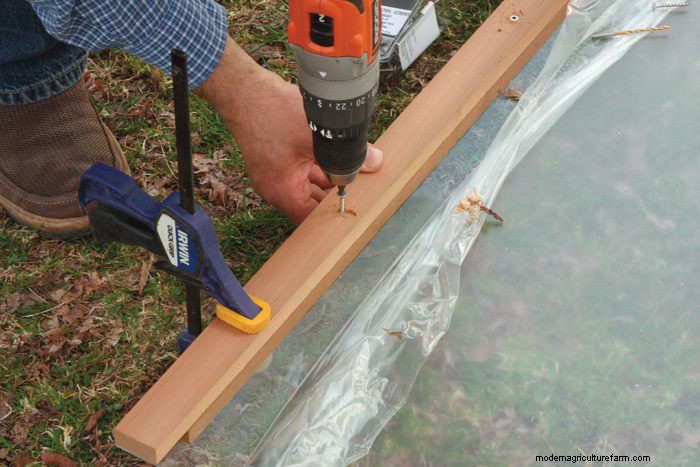

Clamp the acrylic sheet between 1×2s. Fasten with 1¼‑inch deck screws every 12 inches, leaving the bottom strip open so rain and snow run off. Use pan‑head screws along the front to attach acrylic to wood.

➔ An Automatic Opener Is a Finishing Touch

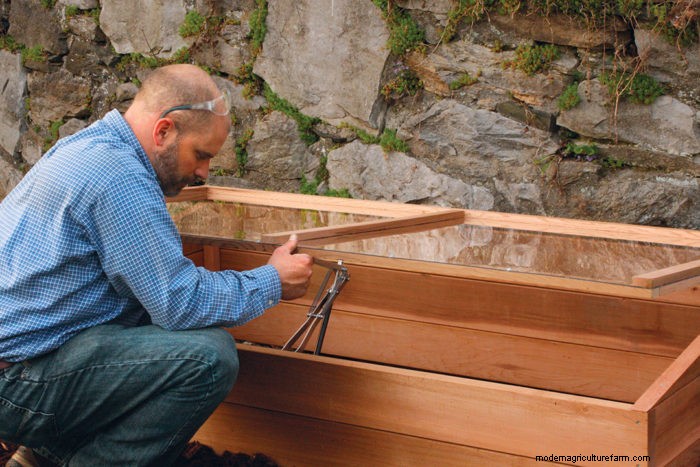

Install a solar vent opener (see charleysgreenhouse.com) that uses a wax‑filled piston to lift the lid automatically on sunny days, preventing overheating.

Construction Tip: Be Careful With That Drill

Pre‑drill all screw holes to avoid splitting the wood or cracking the acrylic. Be cautious not to penetrate the opposite side of the material.

Rob Wotzak is a carpenter and web producer for FineHomebuilding.com and GreenBuildingAdvisor.com.

Photos: Kerry Ann Moore. Illustration: Rob Wotzak, colorized by Bill Godfrey.

Watch this video to learn more about building a cold frame.

Read about four great ways to use a cold frame here.
