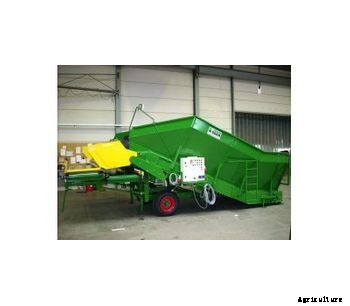

Visser receiving hopper type AL 2400 x 4.90 including horizontal floor.The Visser receiving hopper with dirt eliminator is made to handle your product as gently as possible.
Important properties of the Visser receiving hoppe...
Important properties of the Visser receiving hopper :
- Solid chain of the moving floor with soft rubber belt.
- Minimal drop height from the main belt tot the dirt eliminator and from the eliminator to the product belt
- Rubber seals on hopper sides to minimize brusing
- Unique Visser drive which is maintance free.
- Adjustable dirt eliminator angle
- Adjustable product conveyor driven by two electric drummotors which can turn left or right
- Machine is well designed and made out of high grade materials for a long service life and suitable for agriculture and industrial use
- Suitable for potatoes, onions, seedonions, carrots, witloof chicory.
Specifications
- Floorwidth : 2.40 m
- Floorlength : 4.90 m
- Entrance width : 3.40 m
- Fillingheight : 0.65 of 0.80 m
- Dropheight 0.85 - 1.20 m
- Beltspeed : By 10-80 Hz 0.30-2.55 m/min, by 1-80 Hz 0.03-2.55 m/min
- Soil-productbelt (LxB) : 3.05 - 0.60 m
