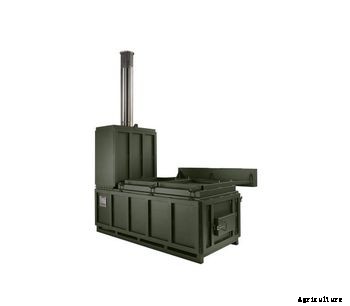

The i8-200A is a high capacity animal incinerator which is suitable for disposing of large domestic animals, sheep, lambs and small cattle benefiting from a wide opening door and high hourly burn rates. This model is 'DEFRA Approved' and is an ideal waste disposal solution for farms, shooting practices, slaughterhouses, abattoirs or veterinary practices. This unit benefits from a secondary chamber with afterburner for the re-burn of harmful emissions with a 2 second retention time.
Typical Animal Waste Applications
- Butcheries
- Veterinary Laboratories
- Animal Research Centers
- Slaughterhouse less than 200kg day
- Animal Waste Collection
All our incinerators are hand-built in the UK by time-served welders and fabricators.
Technical Specification
- Combustion Chamber Volume (m3): 1.92m3
- Burn Rate*: up to 150kg per hour
- Average Fuel Consumption: 29 kg per hour
- Operational Temperature: 850 - 1320°C
- Gas Retention in Secondary Chamber: 2 secs
- Temperature Monitoring: Yes
- Average ash residue (%): 3%
- Thermostatic Device: Yes
- External Length (mm): 3070mm
- External Width (mm): 1370mm
- External Height (mm): 4390mm
- Shipping Weight: 5000kg
* - The burn rates provided are to be used as a guide. Burn rates are also dependent on the calorific value of waste, fuel quality and local atmospheric conditions.
