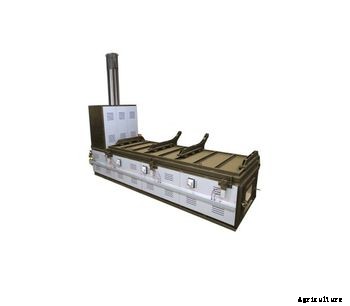

The I8-700A model is the established 'powerhouse' amongst our large-scale incinerators. The i8-700A has the second highest capacity in our range of animal incinerators and is suitable for disposing of horses, cattle and other large animals benefiting from a wide opening door and high hourly burn rates. This model is 'DEFRA Approved' and is an ideal disposal solution for farms, shooting practices, slaughterhouses, abattoirs, veterinary practices or similar facilities with high quantities of animals. You also get one of the largest primary chambers around, controlled air incineration as standard, and a plethora of options in terms of pre-processing and post-combustion - all geared to increasing the performance and efficiency of this unit. Top loading design provides liquid retention making this incinerator ideal for incineration of many different waste streams. It gives you the size and flexibility you need, with unique value and high quality performance
Typical Animal Waste Applications
- Butcheries
- Veterinary Laboratories
- Animal Research Centers
- Slaughterhouse less than 15000kg day
- Animal Waste Collection
Technical Specification
- Combustion Chamber Volume (m3): 6.75m3
- Burn Rate*: up to 600kg per hour
- Average Fuel Consumption: 65 kg per hour
- Operational Temperature: 850 - 1320°C
- Gas Retention in Secondary Chamber: 2 secs
- Temperature Monitoring: Yes
- Average ash residue (%): 3%
- Thermostatic Device: Yes
- External Length (mm): 6040mm
- External Width (mm): 1910mm
- External Height (mm): 5750mm
- Door Size (mm) : 4580 x 1500mm
- Shipping Weight: 15000kg
For reference only, not to be used for installation purposes. * All burn rates are dependant on the calorific value of the waste being incinerate. Atmospheric conditions,fuel (gas/oil) quality, additonal accessories (autoloader, de-asher) can also have a major impact on actual burn rates.
