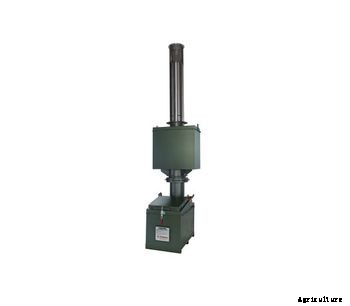

I8-20A model is a small scale incinerator. This model is a controlled air incinerator. It is designed for providing optimal combustion conditions for different waste types. The top loading design provides liquid retention making this incinerator ideal for incineration of many different waste types. This unit benefits from a secondary chamber with afterburner for the re-burn of harmful emissions with a 2 second retention time.
Typical Animal Waste Applications
- Butcheries
- Veterinary Laboratories
- Animal Research Centers
- Food Markets/Stores
- Slaughterhouse less than 250kg day
Technical Specification
- Combustion Chamber Volume (m3): 0.18m3
- Burn Rate*: up to 30kg per hour
- Average Fuel Consumption: 9 kg per hour
- Operational Temperature: 850 - 1320°C
- Gas Retention in Secondary Chamber: 2 secs
- Temperature Monitoring: Yes
- Average ash residue (%): 3%
- Thermostatic Device: Yes
- External Length (mm): 1070mm
- External Width (mm): 660mm
- External Height (mm): 4310mm
- Shipping Weight: 1230kg
* - The burn rates provided are to be used as a guide. We have based these figures on test burns using Medical Waste (lowest burn rate) to Cat. A&B Wood (Maximum Burn rate). Burn rates are also dependent on the calorific value of waste, fuel quality and local atmospheric conditions.
