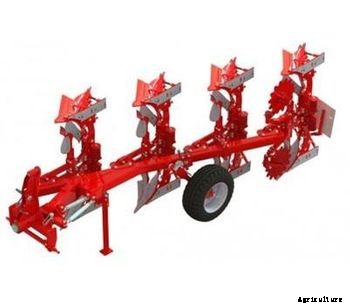

Jupiter II 120 are three-and four-ploughshare mounted reversible ploughs designed for tractors from 70 horsepower. In their design, emphasis is placed on low weight combined with long service life of all components. The plough frame is constructed from a high-strength square tube with a profile of 120 x 120 x 10 mm, giving the plough stiffness and durability. The most durable materials are also used for other parts of the plough, which are further refined in production conditions to achieve a high quality product with high utility value.
Why this Machine
- tradition of plough production since 1993
- the ploughs combine years of experience with the use of modern production technologies
- precise processing to the smallest detail
- high-quality processing ensures your long-term satisfaction and precision work
- we have our own production of wear parts
- wear parts made of special abrasion-resistant steel have a long service life
- spacing of plough bodies 90 and 100 cm
- umożliwia regulację całkowitej długości pługu oraz redukuje wymagania dotyczące masy i dociążenia traktora
- modular frame system 3 + 1
- allows shortening or extending the plough by 1 ploughshare at any time
- clearance under the frame 80 cm
- ensures trouble-free passage of post-harvest residues under the frame, thus preventing clogging
- selection of 5 types of plough bodies
- the well-chosen type of the plough body ensures high-quality work even in the specific conditions of your farm
- two types of plough body protection
- the plough can be fitted with:
- shear bolt protection – for stone-free soils
- spring mechanism protection – for stony soils
- mechanical adjustment of the width of plough bodies
- by mechanical re-adjustment, it is possible to change the width of plough bodies in the range of:
- JUPITER II 120/90: 30,35,40 cm
- JUPITER II 120/100: 33,39,44 cm
- simple method of adjustment
- the adjustment mechanism allows adjustment of the width of the first ploughshare and the optimal tensile line using two screws
